Quido ETH 2/16 OC is an I/O module with 2 inputs, 16 digital outputs, and a thermometer. The inputs are intended for contact, and the digital outputs are open collector type. The optional thermometer can be connected to a cable up to 15 m long and can measure temperatures in the range of -55 to +125 °C. Quido connects directly to a computer network: LAN (Ethernet) and can be fully controlled and managed through a web interface.
You can order a thermometer for Quido, a box, a plexiglass cover, or a DIN rail mounting bracket separately in accessories for Quido.
Features of the I/O Module with Transistor Outputs
- Control and monitoring via Ethernet (10/100 Ethernet; standard computer LAN)
- Communication options: web interface, email, Spinel, MODBUS TCP, SNMP, HTTP GET, XML data connection, TCP and UDP
- Email notifications (port 25, unsecure SSL email).
- Control also from the Windows programs QuidoFX and Wix
- 2 digital inputs for contact.

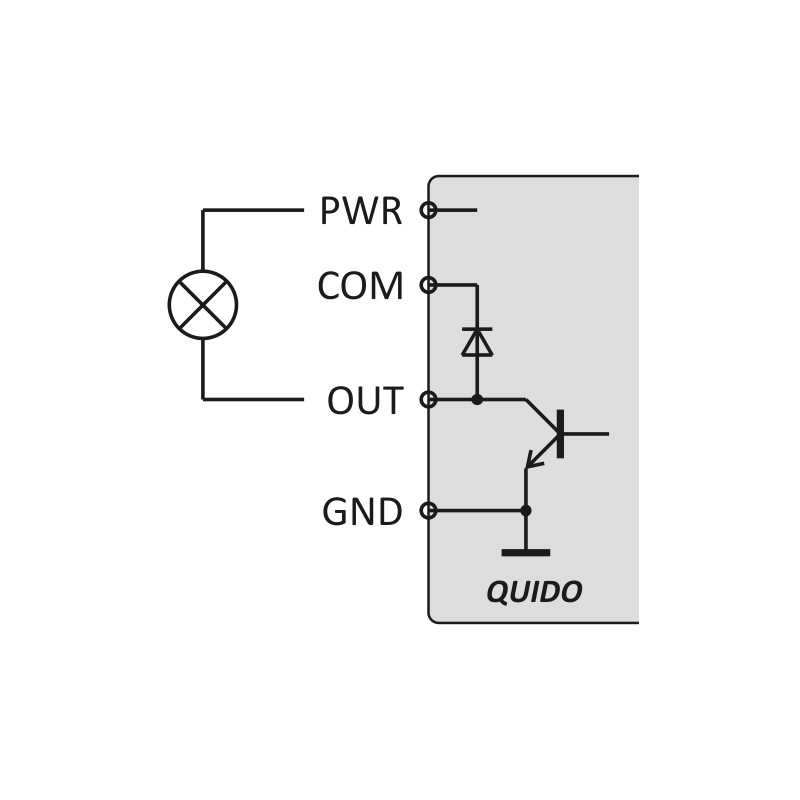

- 16 open collector digital outputs (NPN NO type output).
- 1 thermometer on a cable up to 15 meters long.
- Automatic device response to input state change. Automatic reaction to temperature change.
- With counter function (counting changes in the inputs).
- An expansion board with terminal blocks can be ordered as an accessory.
- The delivery includes a lever for easy handling of the terminal blocks.
Basic Functions of the I/O Module with OC Outputs
- Read input status
- Automatic sending of emails, _HTTP GET or data packet on changes in inputs or temperature status
- Count pulses on inputs or count changes in the state of the inputs
- Output control
- Configure outputs for a specific time
- Temperature monitoring function: control of outputs according to the measured temperature.
It may be Useful

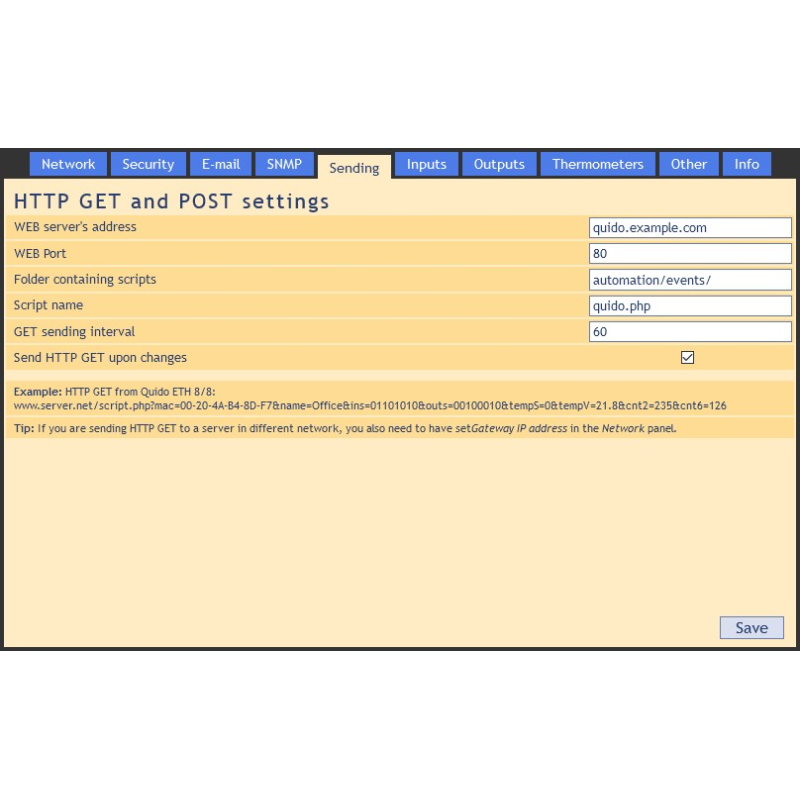

- To see how easy it is to control Quido via HTTP GET.
- Do you have an electricity meter, water meter, etc. with pulse output? connect it to Quido – instructions here.
- How to switch 230V with Quido? See the instructions on how to switch higher voltages with Quido.
- Does the closed contact of the machine in the warehouse close the relay on the other side of the premises? Do you need to transmit contact states or other two-state data over longer distances? Try it via Ethernet with Quido Duplex I/O modules.
- Can’t find the function you’re looking for? Contact us and let Quido be adjusted exactly to your requirements.
Tip: Quido, which has 16× relay outputs
