Bnergy.On
Edge IoT solution for the integration of LoRaWAN sensors and actuators
Bnergy.on is Monolitic's plug-and-play IoT solution for real-time monitoring and remote control of sensors and devices.
Bnergy.on allows the integration of LoRaWAN sensors and actuators in a simple way, making it possible to implement IoT solutions without requiring technical experience or installation of additional software.
Smart Gateway
Integrated technical management tool
The DNA of bnergy.on
The Smart Gateway is the central hardware component in the Bnergy.on architecture. It acts as the link node between field IoT devices (sensors, actuators, counters, etc.) and management systems (cloud, SCADA, BMS).
Designed with Edge Computing capabilities, it allows not only to collect data in real time, but also to process it locally, apply control logic and reduce cloud dependence. This improves efficiency, reduces latency and allows for faster response in critical environments.
It is compatible with multiple communication protocols (LoRaWAN, WiFi, Ethernet and 4G) and easily integrates with third-party systems using industrial standards such as MQTT, Modbus and BACnet.
Technical specifications of the gateway:
- CPU i.MX280 @ 450 MHz, 512 MB Flash
- Wide operating temperature range (-30 to +70 °C)
- Resistant aluminum housing
- 2 10/100-Mbps Ethernet ports
- LoRaWAN 868 MHz (Semtech SX1301 chip)
- Certifications: CE, FCC, PTCRB, ISED, AT&T, VZW, US cellular
- Remote configuration (OTA)
- Embedded Network Server
Flexible hardware configuration:
- LTE Cat4 Modem
- Worldwide coverage with 20 LTE bands (EU, Americas and ASIA)
- 3G and 2G fallback
- MicroSIM card (3FF)
- WIFI: 802.11 a/b/g/n
The CRD Service (Remote Connectivity and Diagnostics) provides a reliable multi-operator cellular connection for your deployed gateways, along with secure remote access via managed VPN.
This service enables centralized monitoring and management of your IoT infrastructure, facilitating the maintenance, updating and diagnosis of each device without the need for physical displacement. Ideal for distributed and difficult to access environments.

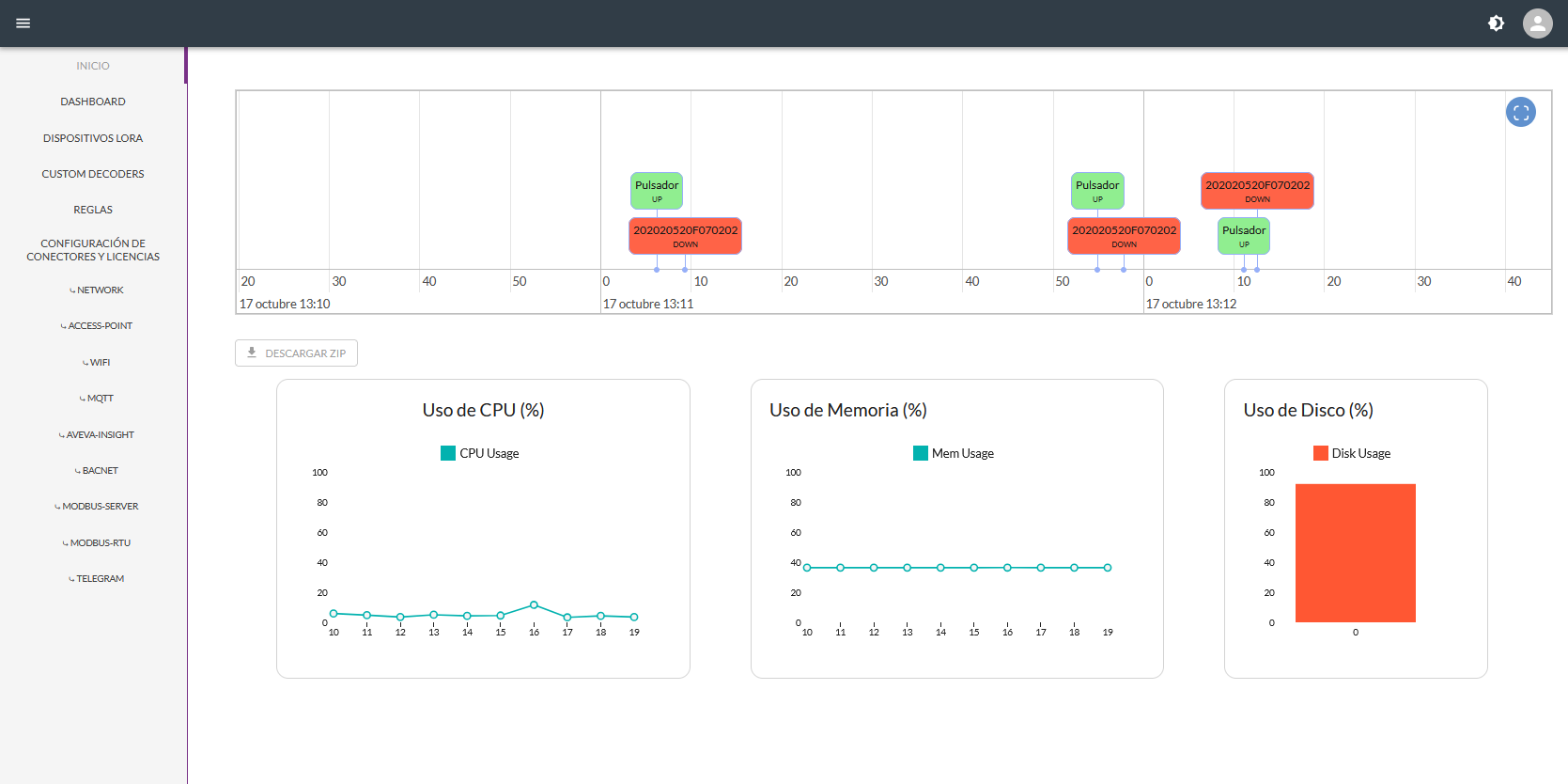

Fully integrated into our Smart Gateway, the bnergy.on IoT management platform offers the following functionalities:

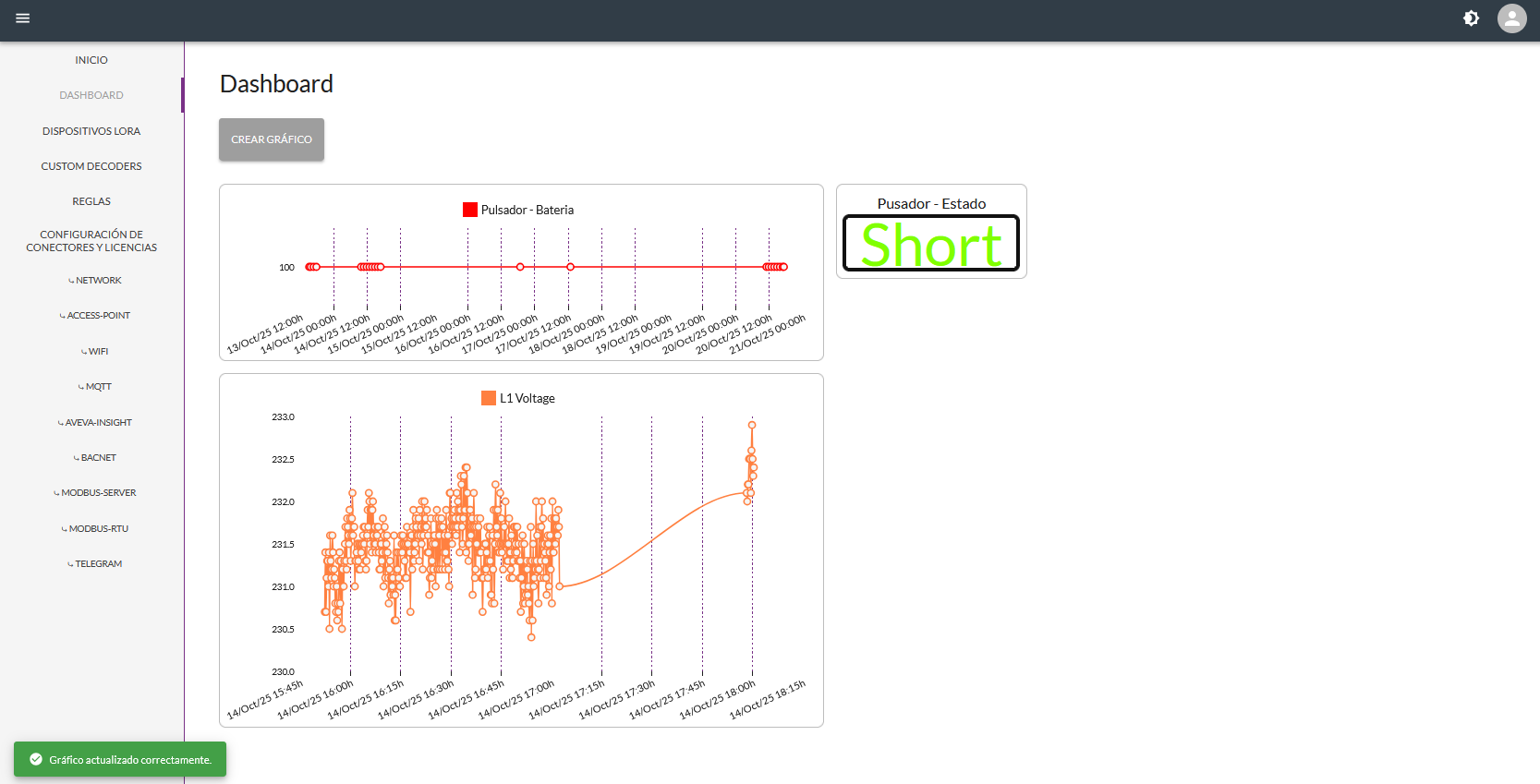

- Real-time access and visualization of data from sensors connected to the LoRaWAN network.
- Simple incorporation of new sensors to the network.
- Sending data to other IoT platforms through the MQTT protocol, or to facility management systems (such as BMS, SCADA, EMS) through the BACnet protocol.

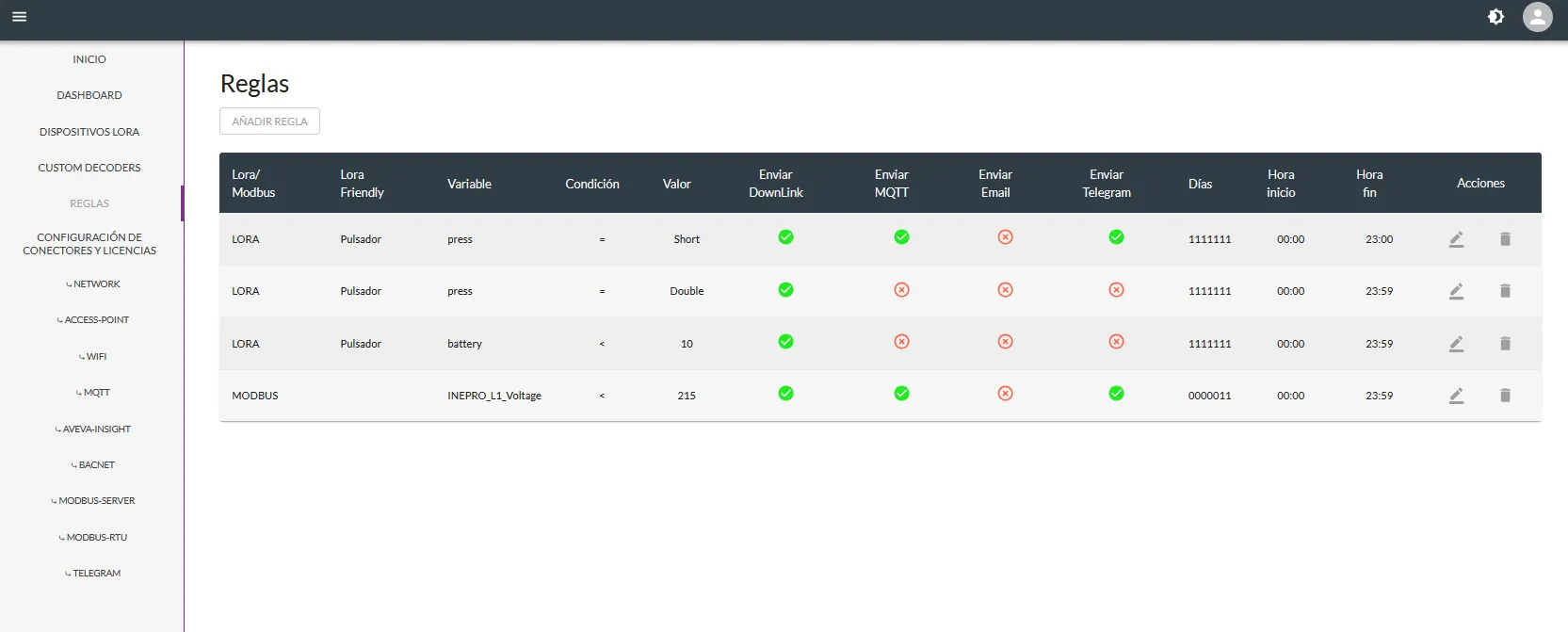

- Configuration of logical rules of the type if-then-else.
- Generation of alarms based on the information collected by the sensor system.
Featured applications
Monitors the presence and movement of people in real time, optimizing the use of spaces and improving energy efficiency.
Performs precise tracking of assets, people or vehicles using Bluetooth Low Energy (BLE) technology indoors or in delimited areas.
Measures indoor air quality (IAQ), including variables such as CO², temperature or humidity to ensure healthy, safe spaces aligned with regulations or comfort standards.
Automatically collects electricity, water or gas consumption data in real time, giving rise to more efficient and accurate energy management.
Centralizes the management of sensors and IoT devices to automate, monitor and optimize building functions such as lighting, air conditioning, access or ventilation.
