Fox DataDiode Ruggedised 1G-10G
Protects critical information with guaranteed unidirectional data transfers at speeds of 1-10 Gbps. Easy maintenance, low TCO, with CC EAL7+ and NATO TOP SECRET certifications.
For the most critical environments, standard protection measures such as firewalls are not enough against advanced persistent attacks (APTs). Faced with this, the Fox DataDiode Ruggedised 1G-10G guarantees a secure and certified unidirectional communication over 1 or 10 Gbps connections, with simple installation and low TCO. This robust data diode protects classified government networks, critical infrastructures, and sensitive production environments. Without software or manipulable firmware, it offers maximum security with Common Criteria EAL7+, NATO COSMIC TOP SECRET, and Tempest Level A certifications.
Fox DataDiode Ruggedised 1G-10G
Protects critical information with guaranteed unidirectional data transfers at speeds of 1-10 Gbps. Easy maintenance, low TCO, with CC EAL7+ and NATO TOP SECRET certifications.
For the most critical environments, standard protection measures such as firewalls are not enough against advanced persistent attacks (APTs). Faced with this, the Fox DataDiode Ruggedised 1G-10G guarantees a secure and certified unidirectional communication over 1 or 10 Gbps connections, with simple installation and low TCO. This robust data diode protects classified government networks, critical infrastructures, and sensitive production environments. Without software or manipulable firmware, it offers maximum security with Common Criteria EAL7+, NATO COSMIC TOP SECRET, and Tempest Level A certifications.
Unidirectional Data Protection for Mission-Critical Environments
The Fox DataDiode Ruggedised 1G/10G ensures the most critical data transfer with a software-free, firmware-free architecture without configurable vulnerabilities. Its robust and certified design guarantees the absolute protection of assets, infrastructures, and classified networks, even in the most demanding environments.
Operation Based on Physical Isolation
Forced One-Way Communication
The Fox DataDiode establishes a simplex optical connection between two network domains, allowing data to flow only from the source environment (upstream) to the destination environment (downstream). There is no possibility of return, either physically or logically, thus preventing any attempt to access or exfiltrate from the network with a lower level of trust.
No Configuration, No Software, No Backdoors
As it does not have any programmable components, the device cannot be configured, exploited, or manipulated remotely. This absence of internal logic eliminates the need to apply updates or patches, and makes it a stable and predictable solution for long-term deployments.
Industrial Construction for Demanding Environments
Resistant Design, Prepared for the Field

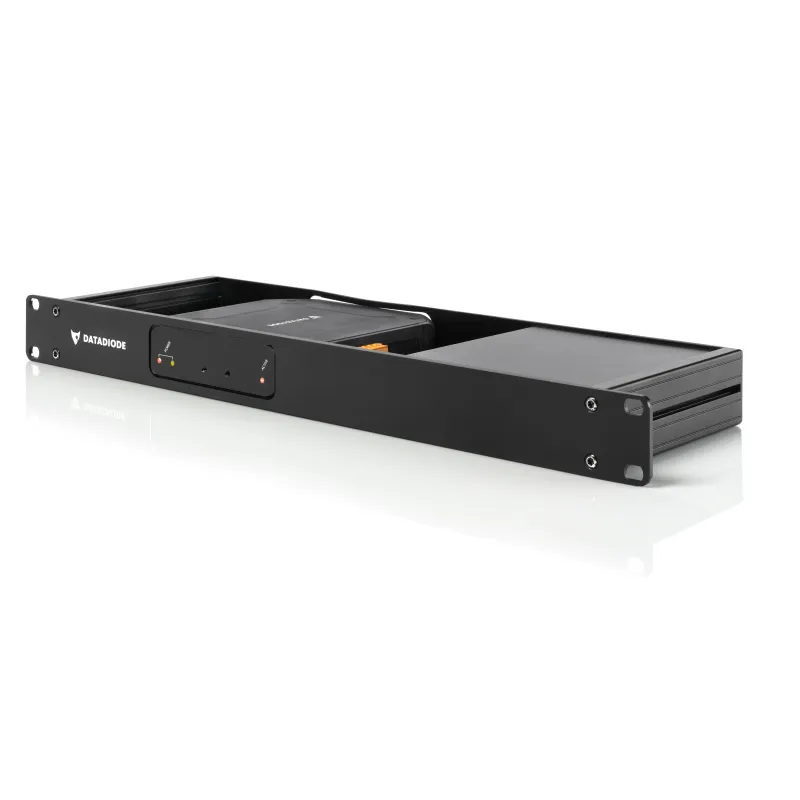

Mounted in a 1U metal chassis compatible with 19” racks, the Fox DataDiode Ruggedised is manufactured with coated steel and anodized aluminum. It offers vibration resistance (MIL-STD 810F) and shock resistance (MIL-STD 810G, 40g, 11 ms), and operates continuously in a temperature range of -20 °C to +60 °C, with relative humidity up to 85% without condensation.
Redundancy and Energy Efficiency

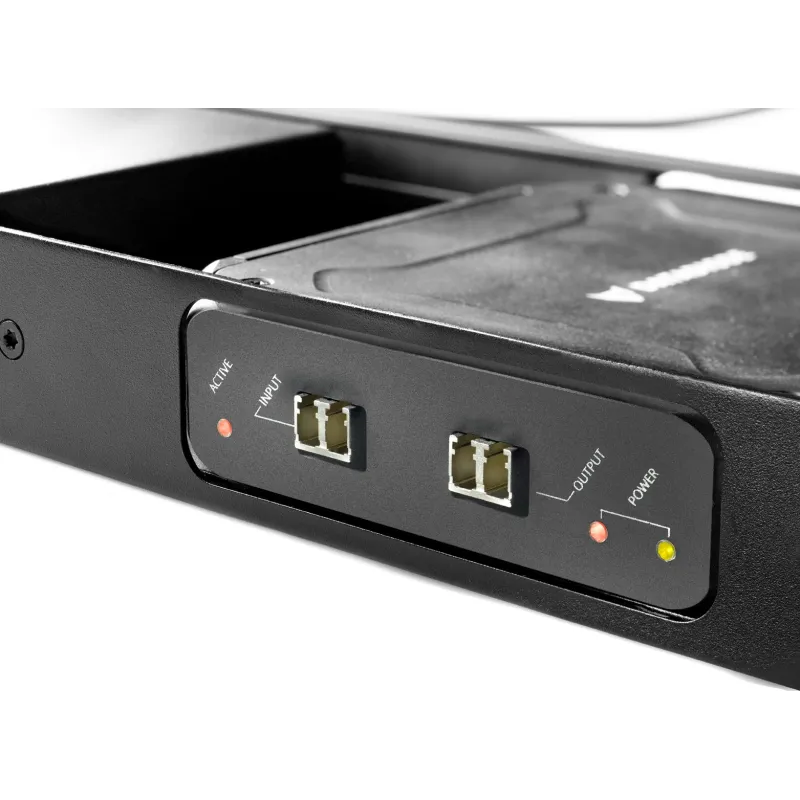

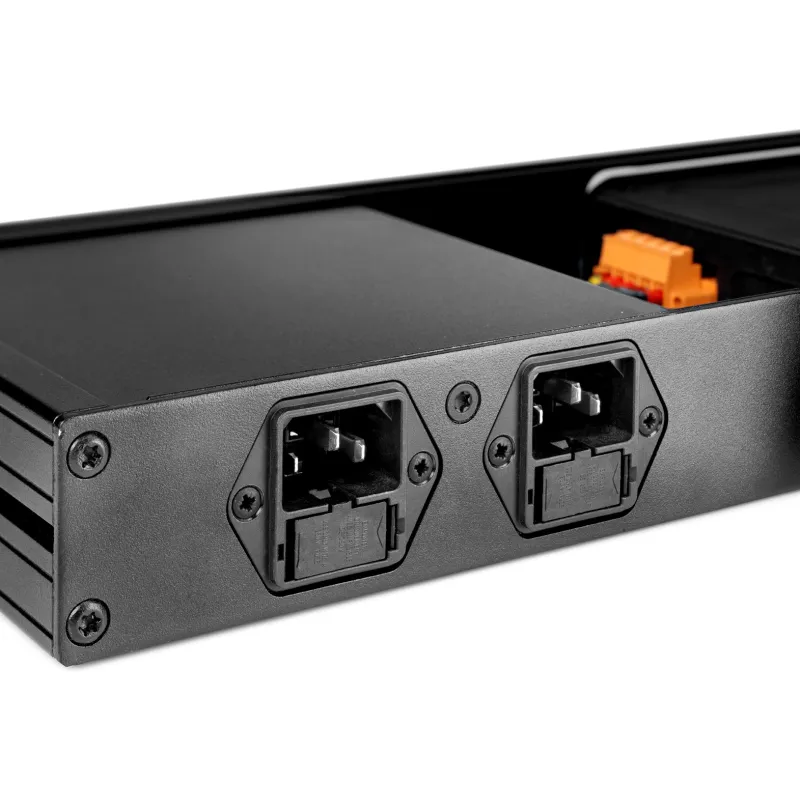

The device incorporates dual power input (IEC320 C13) to ensure high availability, and its energy consumption is only 3.2 W, suitable for environments that require continuous energy efficiency. It uses LC optical connectors and supports OM3/OM4 multimode fiber with a range of up to 550 meters.
Secure and High-Performance Data Transfer
1 Gbps and 10 Gbps Models
Available in versions of 1 Gbps (1000BASE-SX) and 10 Gbps (10BASE-SR), the Fox DataDiode Ruggedised allows large volumes of information to be transferred with a minimum latency and maximum stability.
Compatibility with Industrial and Corporate Protocols
The solution is compatible with a wide range of protocols, including:
- SMB, FTP, SFTP, SCP, NFS.
- HTTP(S), REST API, AMQP.
- Syslog, SNMP traps, SMTP.
- Modbus, OPC (UA y Classic), PI.
- WSUS, antivirus updates, Linux repositories.
- Replication of Oracle, MSSQL, and MySQL databases using GoldenGate or SharePlex.
Advanced Security Certifications
After being evaluated by independent bodies, the Fox DataDiode Ruggedised has the most demanding certifications:
- Common Criteria EAL7+, the highest level recognized by the CCRA agreement.
- NATO COSMIC TOP SECRET, under the Green Scheme (provisional).
- TEMPEST SDIP-27 Level A, with validation per unit available upon request.
- CE marking, in accordance with IEC 62368-1 and IEC 60950-1.
- Compliance with RoHS 2 (Directive 2011/65/EU).
- BSI level 2 tamper-evident seal.
- ECCN 5A003 Classification (Wassenaar Arrangement), with certificates of origin available.
All of them guarantee its suitability for use in defense, public administrations, energy, banking, industry, and other regulated sectors.
