IBH Link S7++ – 20266
If a Siemens PLC needs to be connected to a PC via Ethernet, the usual method is to use a Communication Processor (CP). IBHsoftec has a more flexible solution: IBH Link S7++. It is a cost-effective Ethernet-PROFIBUS gateway for programming, drive configuration, for communication between PC and Siemens PLC, communication between PLC and FDT applications.
IBH Link S7++ – 20266
If a Siemens PLC needs to be connected to a PC via Ethernet, the usual method is to use a Communication Processor (CP). IBHsoftec has a more flexible solution: IBH Link S7++. It is a cost-effective Ethernet-PROFIBUS gateway for programming, drive configuration, for communication between PC and Siemens PLC, communication between PLC and FDT applications.
- MPI
- PPI
- Profibus (DP, FDL, FMS, PA)
- RFC1006, ISO Over TCP
- Field Bus
- Industrial Ethernet
- Serial
- IBHsoftec Industrial Gateways
If a Siemens PLC needs to be connected to a PC via Ethernet, the normal procedure is to use a Communication Processor (CP). IBHsoftec has a more flexible solution: IBH Link S7. It is a cost-effective Ethernet-PROFIBUS gateway for programming, drive configuration, communication between PC and Siemens PLC, and communication between PLC and FDT applications. It is possible to connect the IBH Link S7 to a hub or switch or directly to your PC’s network card using a crossover cable. The protocol used is standard TCP/IP, so you can control your system via VPN or a router. Of course, you can also use an Internet connection. With the IBH Link S7, online functions can be performed via Profibus DP at up to 12 Mbit/s or via PPI/MPI. The IBH Link S7 will reduce your costs because it does not need Siemens CPs or Simatic Net software.
Features of IBH Link S7:
- PROFIBUS node diagnostics via web browser
- Master Class 2 for acyclic services (DPV1)
- Configuration via web browser
- Configuration via NetPro
- Windows 8 64-bit compatibility
- Windows 10 64-bit compatibility
- Windows 11 64-bit support
- 64-bit STEP7 support
- Time synchronization
- PROFIBUS diagnostics
- Slave diagnostics
- Slave parameter configuration via DPV1
- Data set routing
- Drive configuration
- Integration within the TIA Portal
- DHCP
- S7 routing via RFC1006
- Retrieval/writing via RFC1006
- PLC – PLC Communication
- Access to process data with other PLCs, Windows and Linux
- Support for STARTER, S7-PCT, PDM, LifeList
- Configuration and diagnostics of field devices with TCI
- Panel configuration
- NEU: TRsystems notion.S – Connection Comfort Panels TP1500/TP1900/TP2200
- Online to SIMATIC S5 via SINEC L2
- Up to 16 parallel PC connections at the same time
- Up to 32 parallel MPI/DP connections at the same time
- Automatic bus profile detection
- PG connector
- JRJ45 with auto-negotiation
- LED diagnostics
- Power supply from the MPI/DP interface
- External 24 V power supply
The driver for SIMATIC MicroWin, STEP7, WinCC, ProTool and, of course, S7 for Windows is supplied on a CD with your IBH Link S7. You can also use the IBH OPC server to connect your visualization with the PLC via IBH Link S7. The IBHNet driver allows you to obtain direct access to variables via standard programming languages such as Visual Basic or Delphi. The adapter configuration is very simple and is usually done in a few minutes. The IBH Link S7 automatically detects whether it is connected to a 10 or 100 Mbit/s network. The IBH Link S7 receives its power from the MPI/DP interface, if available, or via the integrated 24 V plug.
In addition to the programming capabilities, there is also an application programming interface for HMI applications included.
For Windows operating systems there are samples in the languages Visual Basic, Visual C, Visual C, VB.net, Visual C, Delphi, Java, Excel included. Examples are also included for Linux. After installation, the examples can be found in:
:IBH softec GmbHIBH_NetSamples HMI applications can also be connected via ISO on TCP (RFC1006).
Typical application of the IBH Link S7:
Advanced operating ranges of IBH Link S7:

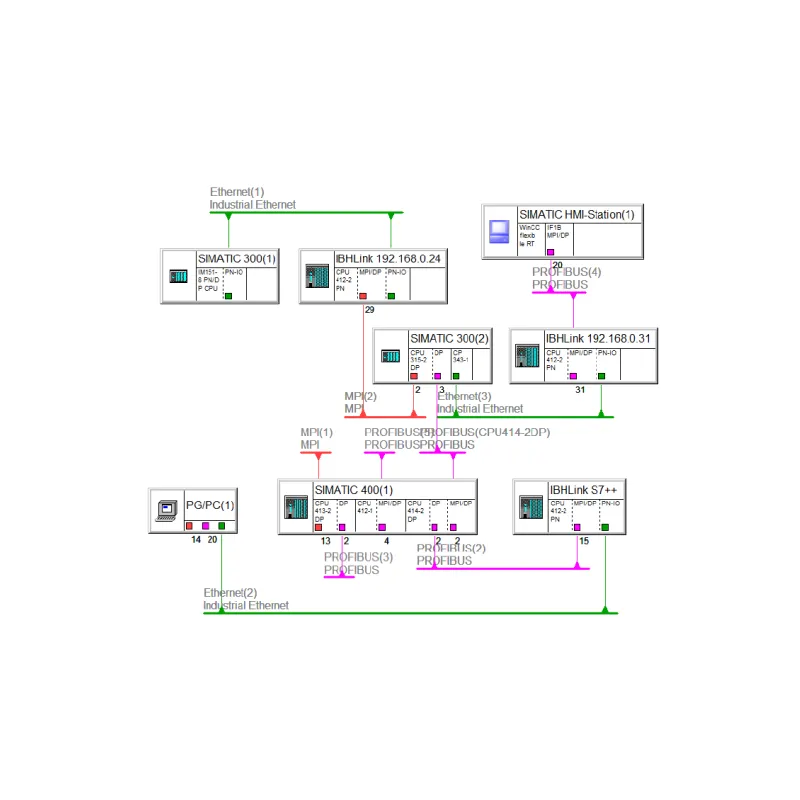

PLC PLC communication, projected with NetPro
.
