ProfiHub B5+ – 17020r (Replaces 17010)
Due to the demands of high-speed networks, PROFIBUS DP must comply with strict guidelines regarding derived lines. The ProfiHub B5+ is the perfect and cost-effective solution to meet user needs and create reliable star networks. It is an essential component for gaining better control during network maintenance and upgrades. Note: B5+ replaces the standard PROCENTEC B5 unit, providing additional functionality without physical design changes. The ProfiHub B5+ has the following unique features:
- DB9 connector and screw connector
- Switchable termination in each segment
- Backbone repeater
- Diagnostic slave device
ProfiHub B5+ – 17020r (Replaces 17010)
Due to the demands of high-speed networks, PROFIBUS DP must comply with strict guidelines regarding derived lines. The ProfiHub B5+ is the perfect and cost-effective solution to meet user needs and create reliable star networks. It is an essential component for gaining better control during network maintenance and upgrades. Note: B5+ replaces the standard PROCENTEC B5 unit, providing additional functionality without physical design changes. The ProfiHub B5+ has the following unique features:
- DB9 connector and screw connector
- Switchable termination in each segment
- Backbone repeater
- Diagnostic slave device
- Profibus (DP, FDL, FMS, PA)
- Field Bus
- Anybus PROFIHUB

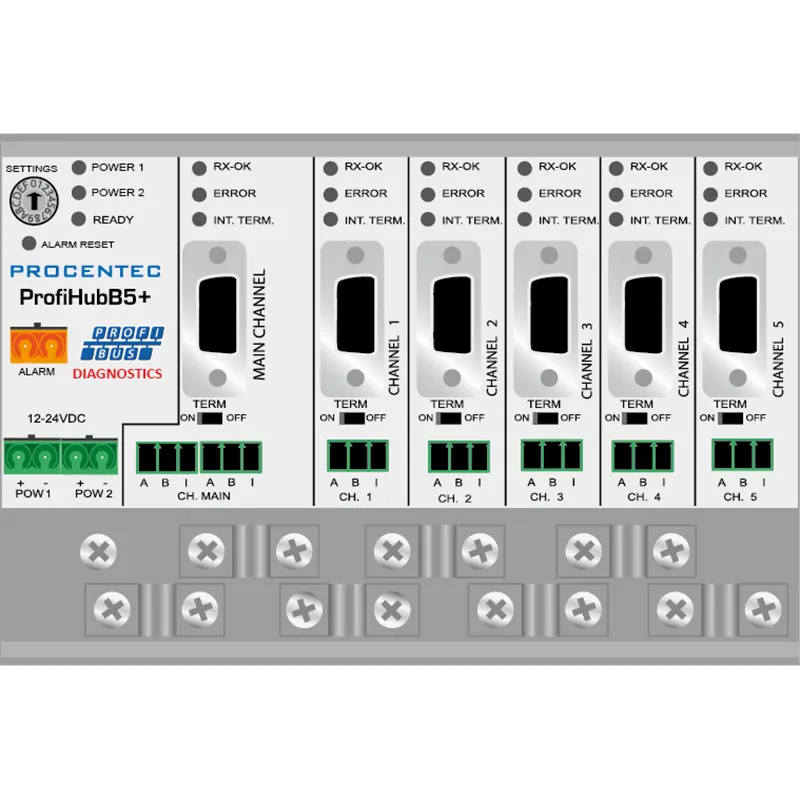

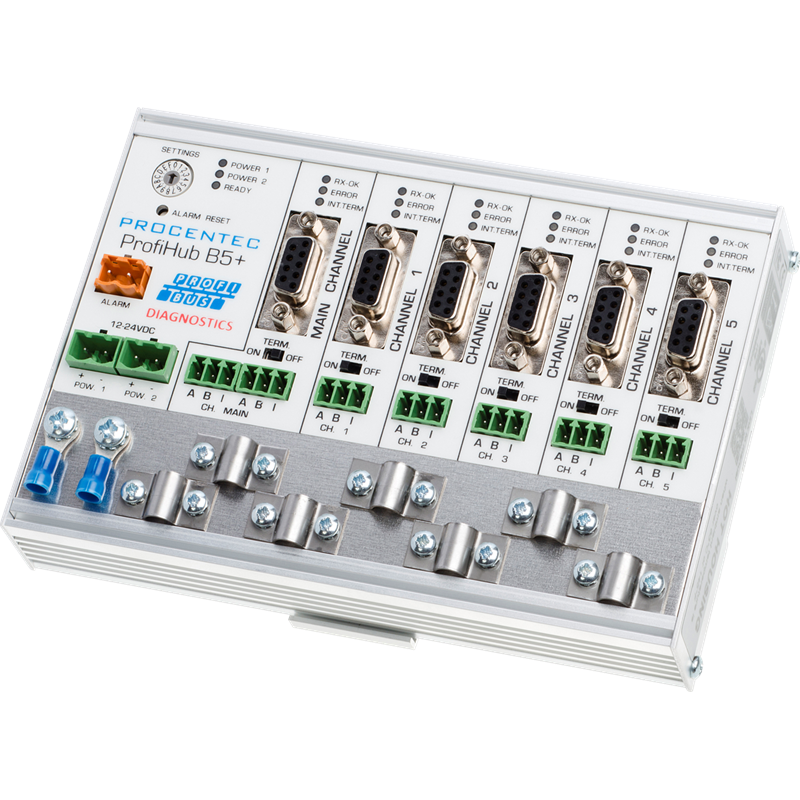

‘ProfiHub B5+’ Multi-Channel Repeater
As an economical solution, the B5+ saves costs by reducing traditional PROFIBUS repeaters. This product is equipped with 5 galvanically isolated transparent repeaters in a single unit (offering 6 segments). Each segment can handle 31 devices and a cable length equal to the main bus. To save costs on plugs and offer flexibility, it contains screw terminals and DB9 connectors. The DB9 connectors are also perfect measuring points for ProfiTrace to quickly measure all segments. The termination of each segment is integrated and switchable.
For PROFIBUS network designs, ProfiHub B5+ offers a reliable and robust backbone solution with solid message verification and selectable redundancy in communication and power supply. The extensive message monitoring in combination with communication and voltage redundancy makes the ProfiHub the perfect access port for network components. An alarm contact is linked to events based on the status of the power supply and bus redundancy if enabled. Unlimited cascading of repeaters with 1200-meter derived lines is possible.
The ProfiHub B5+R is a powerful package that ensures reduced installation complexity, increased uptime, and better implementation of project resources.
This creates an even more reliable network. An alarm contact is linked to events based on the status of the power supply and bus redundancy if enabled.
The ProfiHub B5+ is used in various application areas worldwide.
UL Listed
This product is UL listed.
DNV Certification
The ProfiHub B5+R model is DNV certified.
