PROFINET – BACnet/IP & MS/TP Server Gateway – Inbacprt1k20000
PROFINET to BACnet/IP and MS/TP - 1200 points

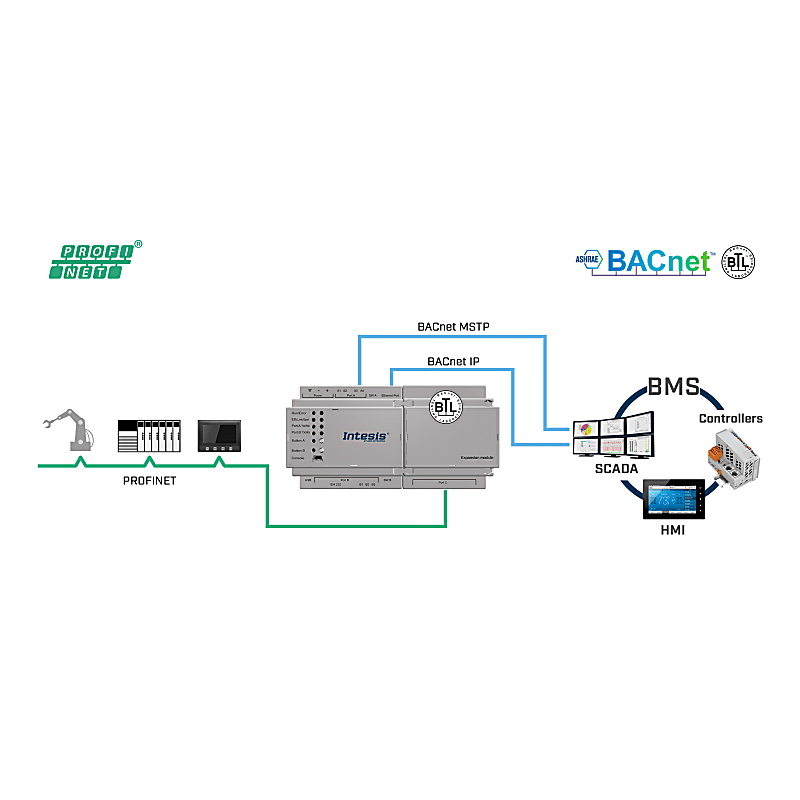

The Intesis BACnet-PROFINET gateway allows seamless interconnection of PLC/BMS systems and their connected devices between BACnet/IP and MS/TP control systems and PROFINET networks. The gateway operates as a BACnet server on the BACnet side and as a PROFINET I/O device on the PROFINET side and is configured via the Intesis MAPS configuration tool.
PROFINET – BACnet/IP & MS/TP Server Gateway – Inbacprt1k20000
PROFINET to BACnet/IP and MS/TP - 1200 points
The Intesis BACnet-PROFINET gateway allows seamless interconnection of PLC/BMS systems and their connected devices between BACnet/IP and MS/TP control systems and PROFINET networks. The gateway operates as a BACnet server on the BACnet side and as a PROFINET I/O device on the PROFINET side and is configured via the Intesis MAPS configuration tool.
- BACnet
- Profinet
- Ethernet
- Field Bus
- Industrial Ethernet
- RS485
- Serial
Compatibility with BACnet/IP server or BACnet MS/TP
BACnet/IP server (via Ethernet) or BACnet MS/TP (via EIA-485) connection options are supported.
Advanced BACnet functions: calendars, schedules…
Advanced BACnet functions, such as calendars, trend logs, schedules and more, are available.
PROFINET-IO adapter interface (Anybus technology)
The gateway uses Anybus PROFINET-IO technology, which utilizes the award-winning NP40 network processor.
Option to export GSDML and TAG configuration files
GSDML and TAG configuration files can be exported for easy integration into Profinet PLCs.
Input and output data support (up to 500 bytes)
Data transmission supports a maximum of up to 500 bytes of input and output data.
Automatic updates of the configuration tool and the gateway
Both the Intesis MAPS configuration tool and the gateway firmware can receive automatic updates.
