Quido ETH 0/2: 2 Outputs and Thermometer – QUIDO_ETH_0/2_1
Includes 2 outputs and a thermometer. Quido connects directly to a LAN (Ethernet) and can be fully controlled and managed through a web interface. The outputs are relays with an inverter contact. The thermometer can be connected to a cable of up to 15 meters and is capable of measuring temperatures in the range of -55 to +125 °C.
Quido ETH 0/2: 2 Outputs and Thermometer – QUIDO_ETH_0/2_1
Includes 2 outputs and a thermometer. Quido connects directly to a LAN (Ethernet) and can be fully controlled and managed through a web interface. The outputs are relays with an inverter contact. The thermometer can be connected to a cable of up to 15 meters and is capable of measuring temperatures in the range of -55 to +125 °C.
- Galvanic isolation
- Modbus-TCP
- SNMP
- Spinnel
- Ethernet
- Papouch I/O modules
Quido ETH 0/2 includes 2 outputs and a thermometer. Quido connects directly to a LAN (Ethernet) and can be fully controlled and managed through a web interface. The outputs are relays with an inverter contact. The thermometer can be connected to a cable of up to 15 meters and is capable of measuring temperatures in the range of -55 to +125 °C.
Thermometers, plexiglass covers, metal boxes, or DIN rail mounts can be found in Quido accessories.
I/O Module Features
- Connects directly to LAN (10/100 Ethernet)
- Controlled by: web interface, email, Spinel, MODBUS TCP, SNMP, HTTP GET, XML, and Wix applications
- Email notification (without SSL/TLS, port 25).

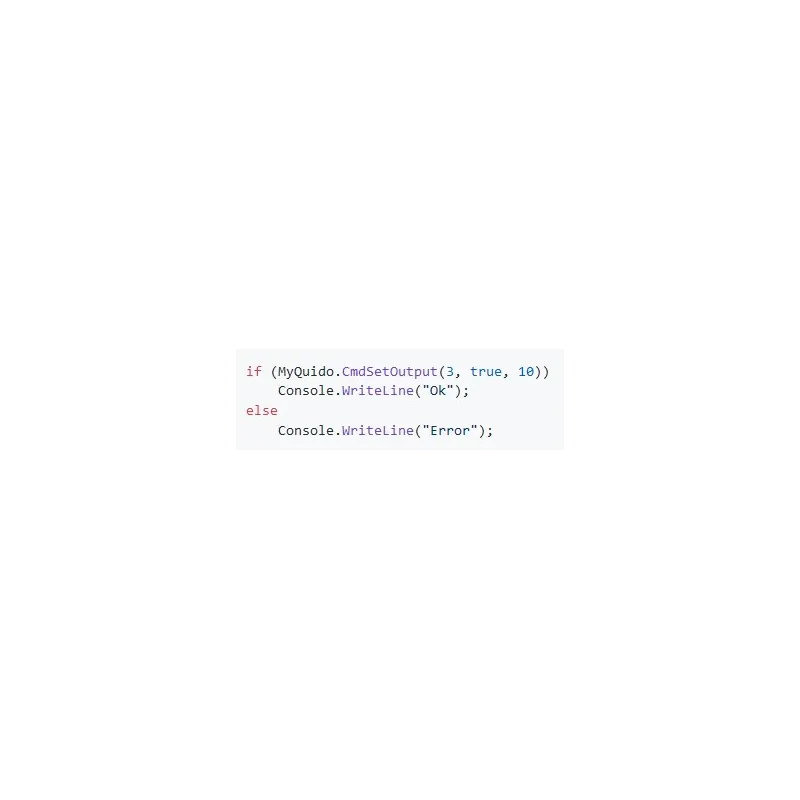

- For developers: Spinel.NET library on Github with examples in C# (documentation in Czech only)
- LED indication of power, communication, and input and output status.
- 2 Outputs = switched contact relays.
- 1 Thermometer with a measuring range of -55 to +125 °C.
- Automatically sends information about changes in the inputs.
- Autonomous control based on the measured temperature.
- Counts pulses on the inputs.
- Operating temperature of the electronics: -20 to +60 °C.
- External power supply from 8 to 30 V.
- Plastic lever for Wago 236 terminals (standard part of the supply).
Basic functions and block diagram of the Quido ETH module
Basic Functions of the I/O Module
- Output relay control with changeover contact
- Configuration of the outputs for a defined period
- Thermometer: measuring range from -55 to +125 °C
- Temperature monitoring (the relay closes when the temperature changes, closes for a predefined period when a specific temperature is reached; sends an email or HTTP GET)

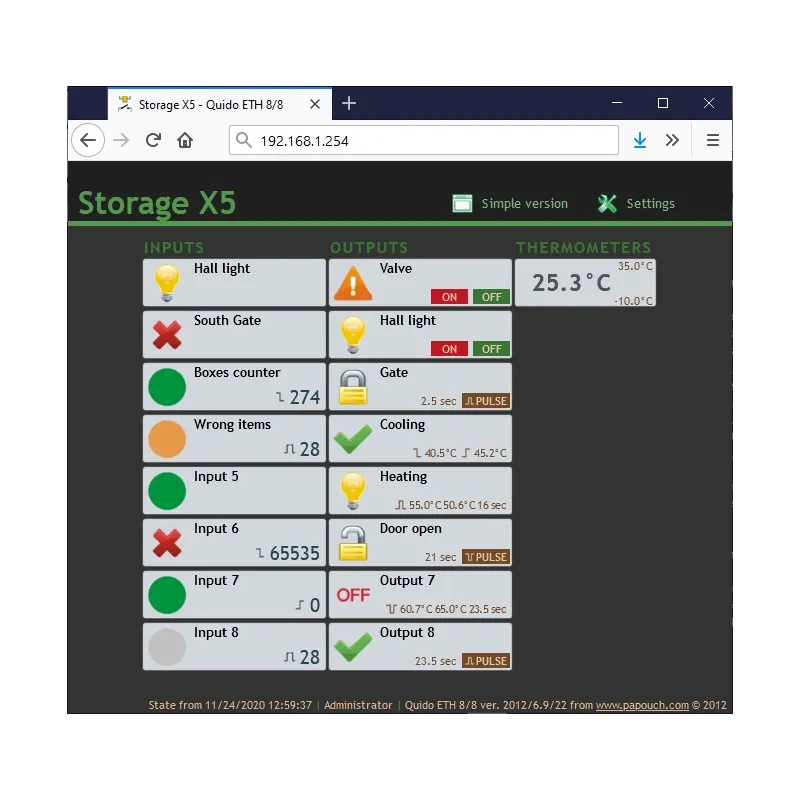

The main page of Quido ETH 8/8
Practical Applications
- Easy control and sending of notifications of the current status via HTTP GET queries.
- Do you want to monitor electricity consumption directly from your PC? How to connect Quido and the electricity meter.
- Do you need to control a 230 V appliance? How to switch 230 V with Quido and relay.

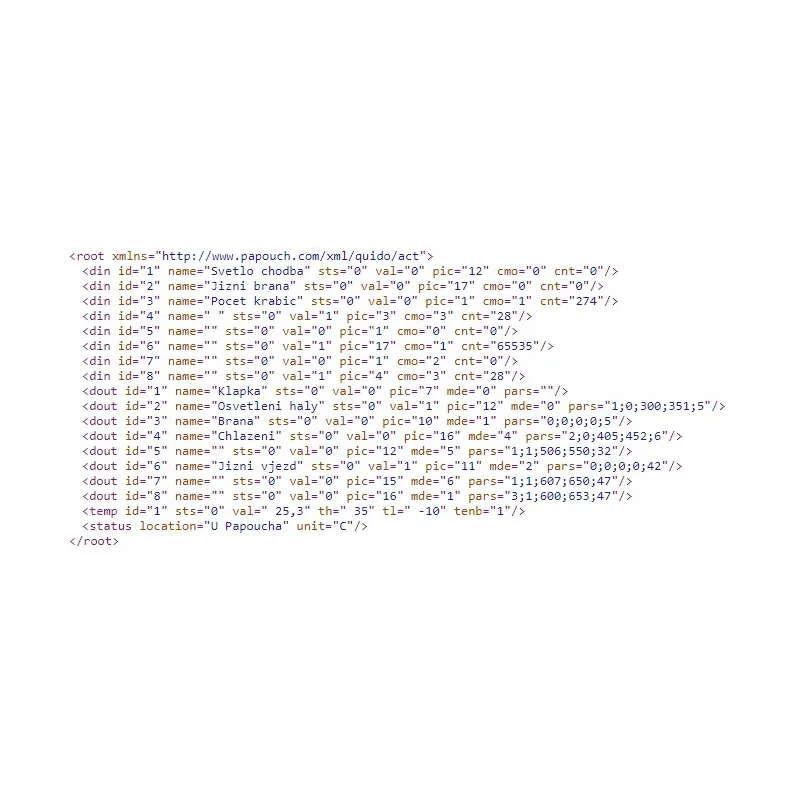

- What information can you get from XML in Quido?
- Are you looking for a function that is not currently available? Do not hesitate to contact us and the Quido module can be customized to your needs!< /li>

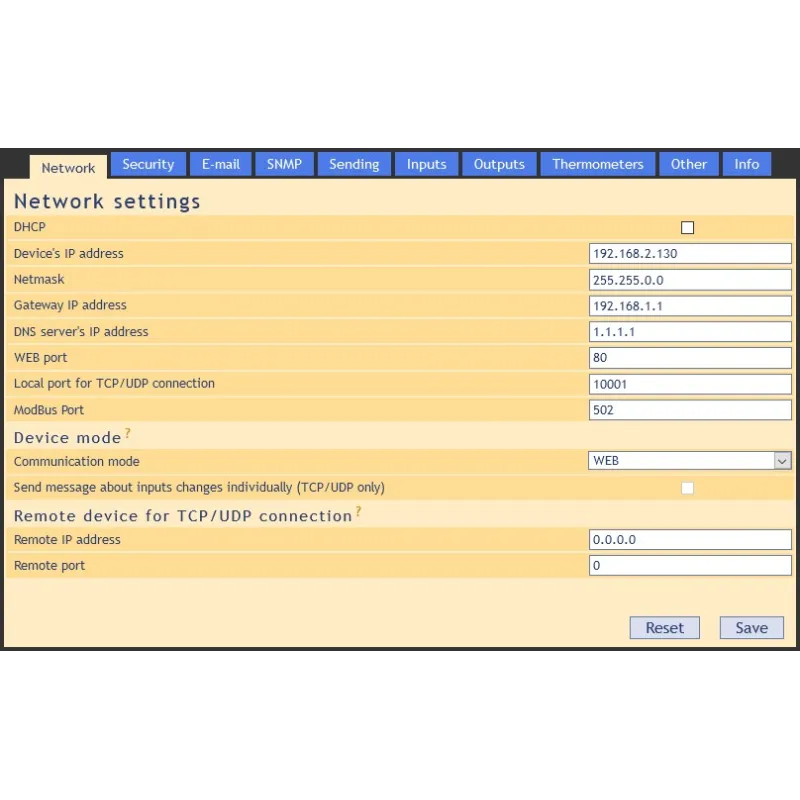

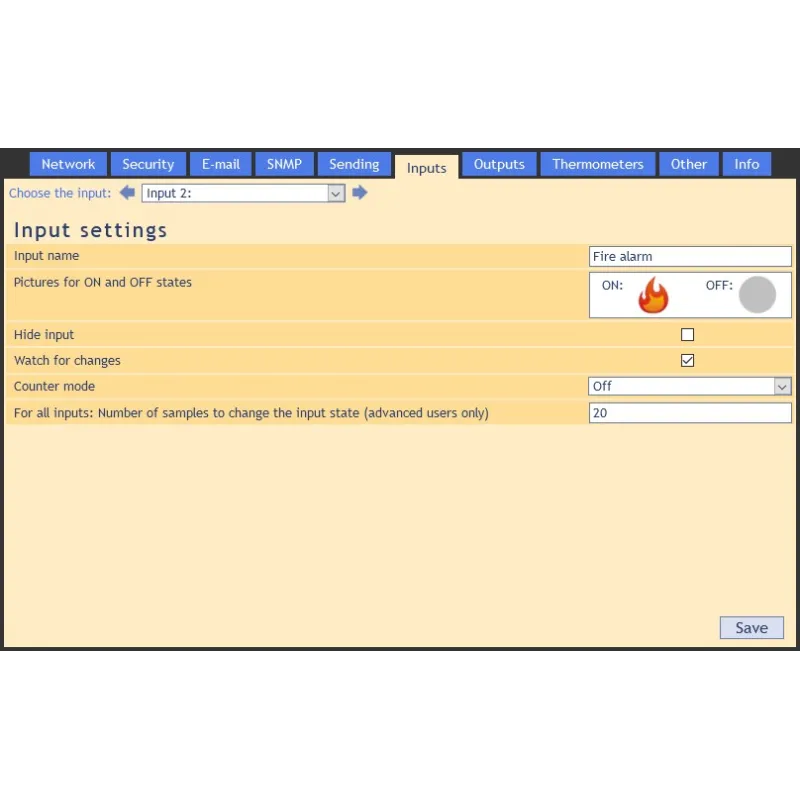

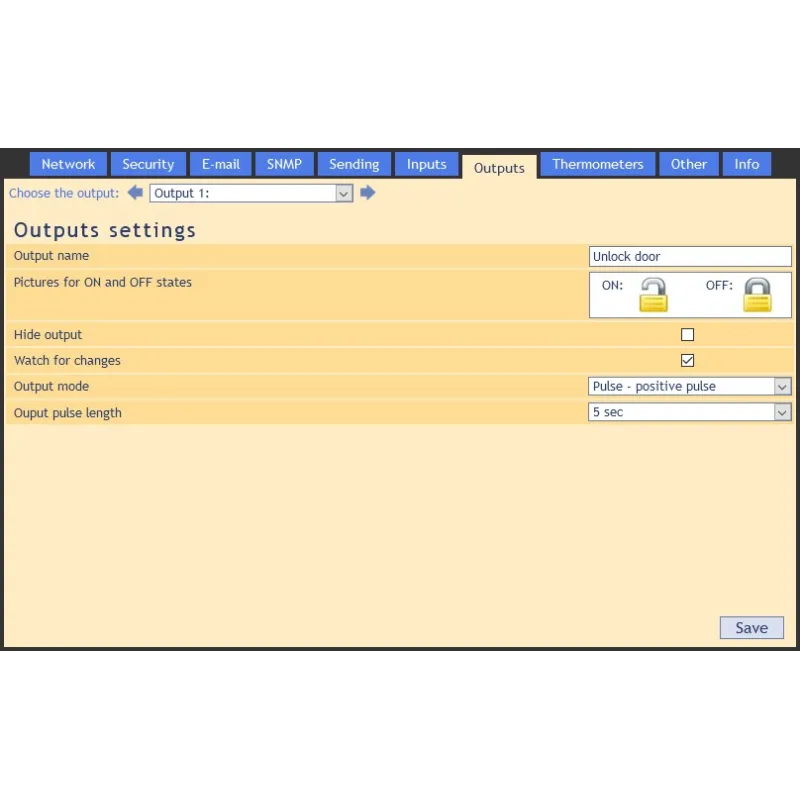

Configuration via web interface (example of Quido ETH 8/8)
