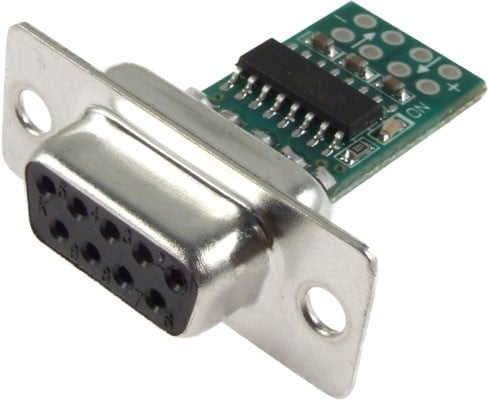

TTL232 is an integrated converter of RS232 serial line signals to TTL signals. Its miniature size facilitates integration into a connector cover (D-Sub9).
Simplified Converter Diagram
Technical Parameters
- Converts RxD and TxD signals from the RS232 line
- Power supply: from DTR and RTS signals or an external power supply 3.4 to 5.5 V DC
- Current consumption: 5 V, typ. 8 mA
- Current consumption: 3.3 V, typ. 3.5 mA
- Integrated power indicator (green LED)
- RS232 connector: D-SUB 9 F (Cannon 9 female)
- Maximum speed: 460 kbps
- Operating temperature: -40 to +85 °C
- Dimension: 31 x 33.5 x 13 mm
- Weight: 10 g

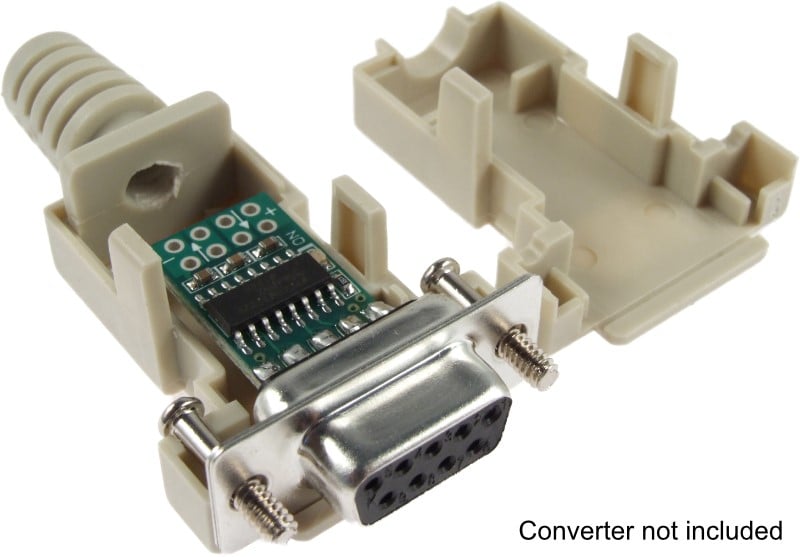

- Connector cover option: ref. RS232 TTL Cover.
Do not hesitate to consult us if you need to make any custom modifications to the TTL232 device.
How to Power the Converter from DTR and RTS Signals?
If you are using third-party software: look for Enable DTR, Enable RTS or similar settings. It is also possible that the software configures the DTR and RTS signals automatically. This can be verified by measuring a voltage greater than approx. 7 V on pins number 4 or 7 of RS232 with a multimeter (measured against terminal number 5, which is ground).
If you are writing your own software: configure the DTR or RTS signals to the active (L) level. For example, in the .NET (C#, VB) programming environment, these are the SerialPort.DtrEnable and SerialPort.RtsEnable properties, respectively.< /p>
