Isolated industrial USB to RS232 converter. Simple installation: a virtual COM port is created on your Windows PC. Easily usable also in the Linux operating system.
Description of the USB to RS232 Converter
- USB to RS232 conversion (serial port, COM port)
- Transferring all RS232 signals
- Galvanically isolated RS232 port
- Access to the serial line through a virtual serial port
- Interruption of ground loops
- Protection of the PC against overvoltages
- Data transfer rate up to 500 kb/s

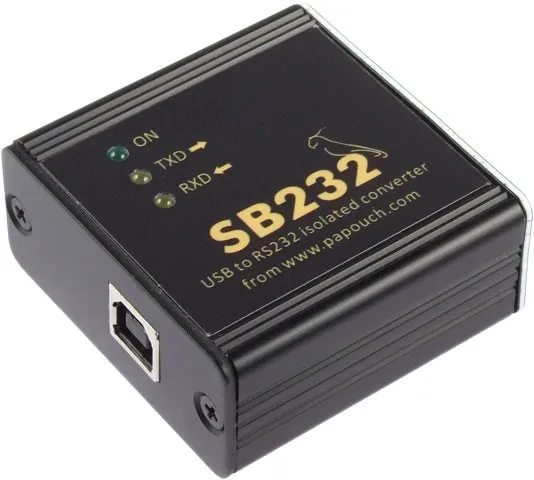

- Indication of power and data flow by means of three indicators (ON, TXD, RXD)
- 5 V power supply from the USB interface
- A unique serial number that allows the user “via USB-HUB” to connect several converters together with other USB devices
- Connection to a PC using a standard USB cable supplied with the converter
- Working temperature range: -40 to +85 °C
- Dimensions 54 x 62 x 24 mm
- Supported operating systems: Windows 32 bit/64 bit, Linux, MAC OS, Android
So, What Can the SB232 Do and What is it for?
Nowadays, most new laptops do not have serial ports or, at best, have one. This is often insufficient and that is where the USB to serial converter comes in. The SB232 is an ideal companion for field application engineers working on legacy, often costly, devices. These devices and their laptops must also be protected from ground loops. Most USB to serial converters fail due to the lack of galvanic isolation. However, SB232 offers complete galvanic isolation while being powered from the USB port. Housed in an anodized aluminum case, it is also very robust, so it will not matter if you drop it by accident.

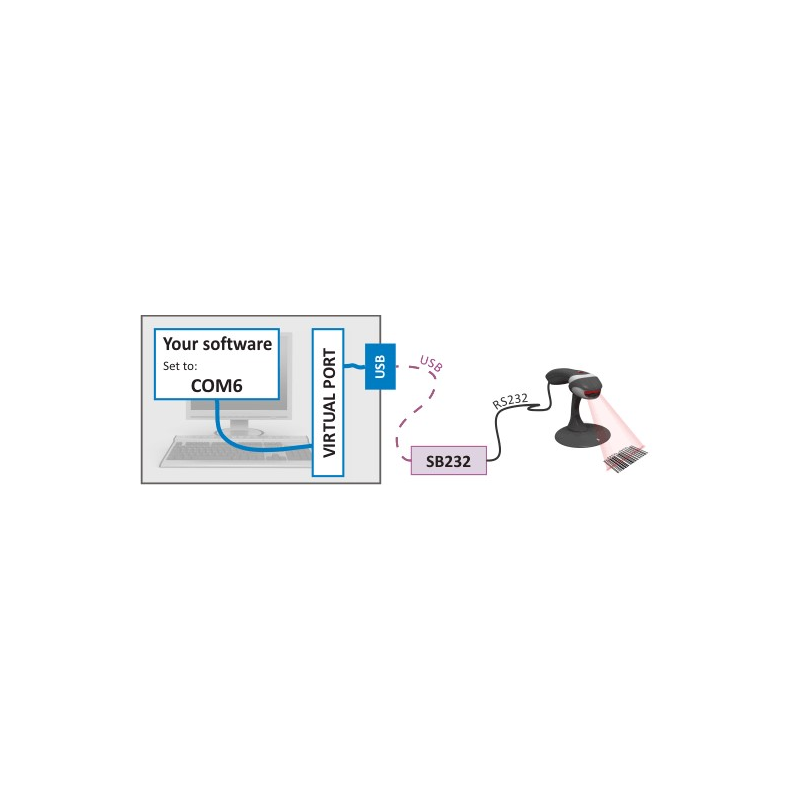

Principal of the virtual COM port: a standard COM port appears in your Windows operating system

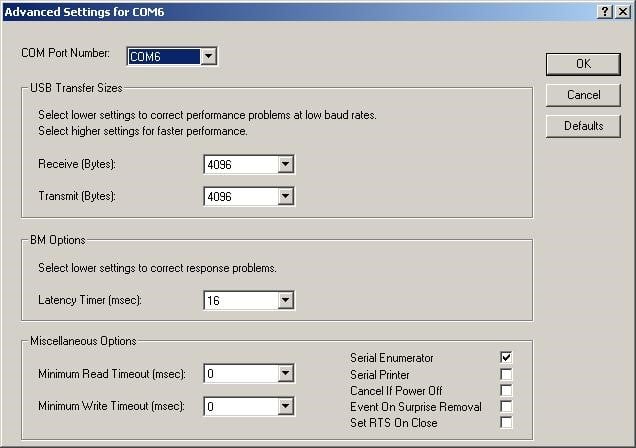

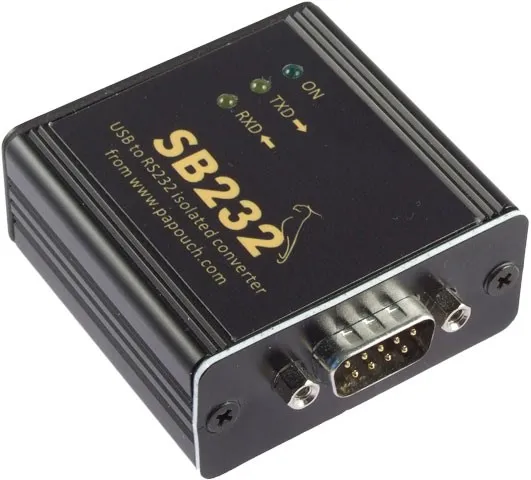

SB232 offers a complete RS232 line: all RS232 signals are transmitted and the pin assignment of the connector is identical to that of a hardware COM port on a PC. Windows drivers also allow you to configure parameters to speed up data transfer and alter handshake signals. But the default values are sufficient in most cases.
