Tx20eth – Ethernet Anemometer – TX20ETH_EU

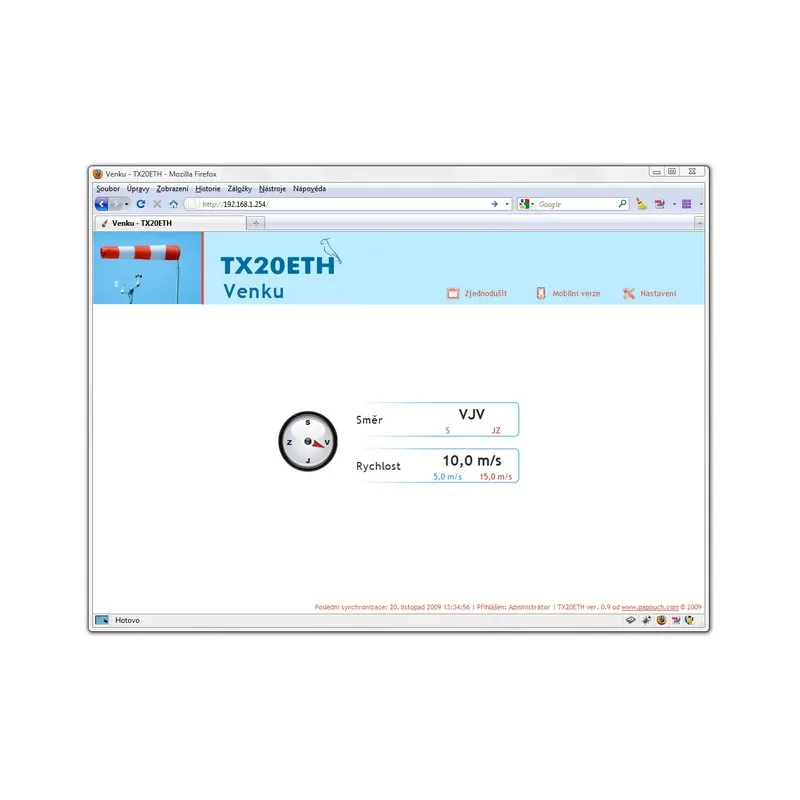

Ethernet anemometer capable of measuring wind speed and direction. It is connected directly to a computer network (Ethernet). The measured data can be processed automatically or by operational personnel. The wind speed and direction are displayed on the internal web interface. When limits are exceeded, TX20ETH can notify the operator by email.
Tx20eth – Ethernet Anemometer – TX20ETH_EU
Ethernet anemometer capable of measuring wind speed and direction. It is connected directly to a computer network (Ethernet). The measured data can be processed automatically or by operational personnel. The wind speed and direction are displayed on the internal web interface. When limits are exceeded, TX20ETH can notify the operator by email.
- Modbus-TCP
- SNMP
- Spinnel
- Ethernet
- Papouch Measurement
TX20ETH is no longer available; it has been replaced by the fully compatible WindETH Anemometer. The name had to be changed so that it was not linked to a specific sensor.
TX20ETH is an Ethernet anemometer capable of measuring wind speed and direction. It is connected directly to a computer network (Ethernet). The measured data can be processed automatically or by operational personnel. The wind speed and direction are displayed on the internal web interface. When limits are exceeded, TX20ETH can notify the operator by email.
For automatic operation and processing, TX20ETH is capable of communicating via a data channel via TCP, using the SNMP and MODBUS TCP protocols. It can also send messages to a remote server using simple HTTP GET requests. TX20ETH values and configuration are easily accessible even in XML format.
The sensor configuration is done through the web interface. Help is available for all parameters.

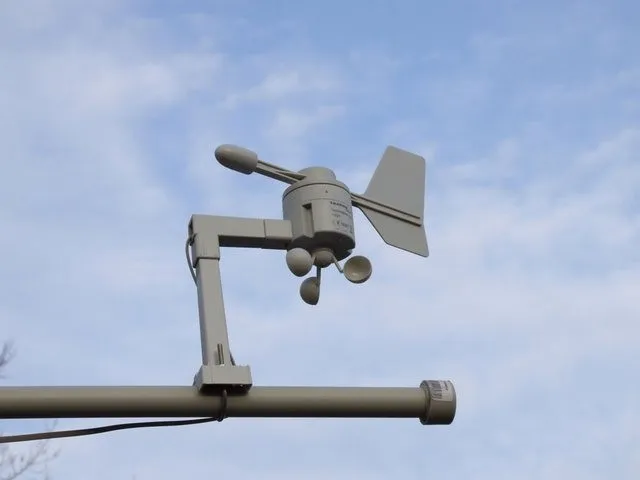

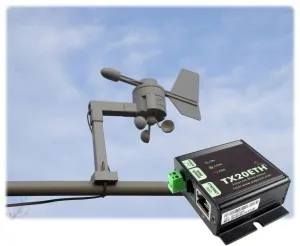

The Wind Sensor is Included in the Package.

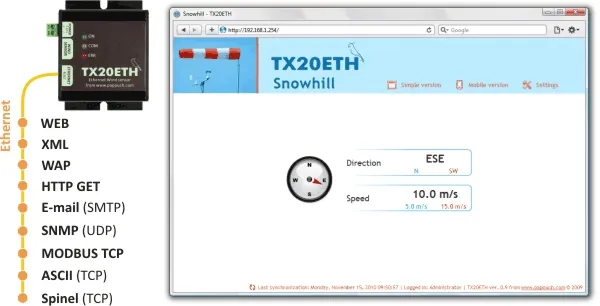

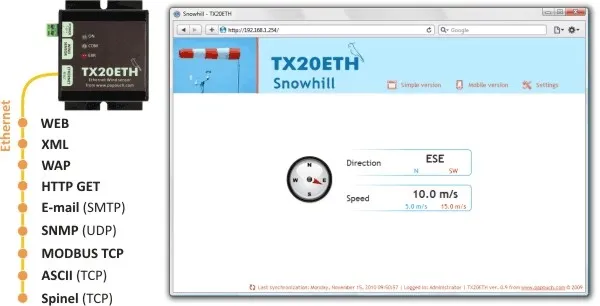

Communication options and internal website of the anemometer.
Communication options
Main Features of the Anemometer
- Wind speed measuring up to 50 m/s (i.e., up to 180 km/h) and resolution of 0.1 m/s.
- Wind direction measurement: 16 positions within the full range of 360°.
- It is possible to use a standard mechanical sensor.
- Connection and communication via computer network (Ethernet).
- Data transmission using TCP/IP protocols (10/100 Ethernet).
- Configuration via web interface.
- Power supply from 7 V to 30 V (a plug adapter is supplied).

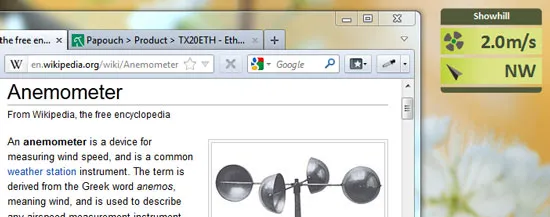

Anemometer device on the Windows desktop< /p>

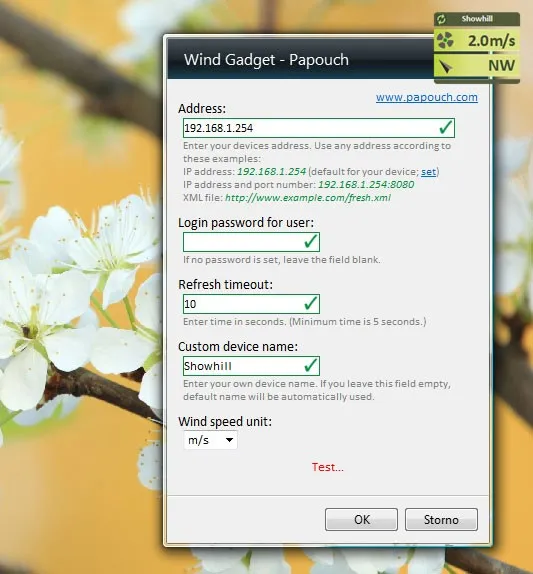

Gadget on the Windows desktop
Measurement Tracking Options
- Internal web page with values without date.
- Small web page suitable for viewing on a mobile phone or PDA.
- Device for Windows desktop
- Possibility to display values of several TX20ETH on one web page.
- Automatic sending of values via HTTP GET request.
- Current values and all configurations easily accessible in XML format.
- Automatically sends emails when established limits are exceeded.
- Communication via TCP channel using Spinel protocol.
- SNMP protocol.
- MODBUS TCP protocol.
- Through the Wix program for PC.
