Multiprotocol devices for measuring CO₂, temperature, humidity, or energy
Multiprotocol devices for measuring CO₂, temperature, humidity, or energy
For a market that evolves day after day, it is inconceivable not to have data that provides the necessary information to determine the starting points of growth. Therefore, the implementation of new technologies also entails the adoption of new measurement systems, which become more precise and demanding over time.
The Danish manufacturer Papouch provides organizations with advanced tools such as multiprotocol sensors, analog input and output converters, and physical layer switching systems, in order to optimize data acquisition. These solutions stand out for their high reliability, ease of use, quick problem solving, and future-proof flexibility.
Why Papouch?
- Its serial sensors (RS232, RS485) can be read through
of Modbus RTU, Spinel. - In its Ethernet versions, they can work with several
protocols such as Modbus TCP, SNMP, XML, POST, GET, WAP, E-mail, ASCII,
SPINEL, which allows them a simple integration into any
SCADA system or application.
Your data quickly, simply, and completely
Whether you have trusted equipment for years or have decided to renew your machinery, Papouch streamlines data acquisition with tools prepared for each case:

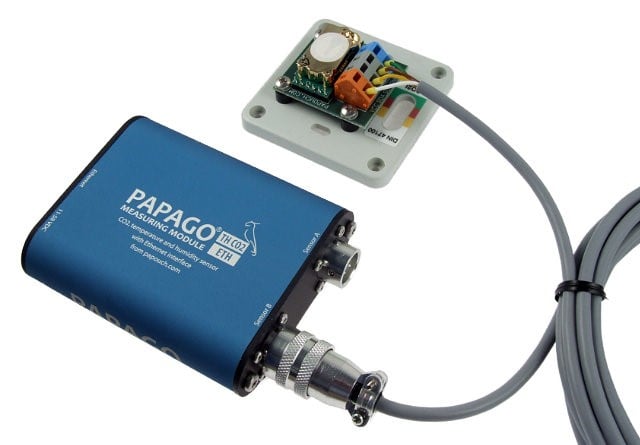

Papago TH CO₂ ETH Sensors
As its name indicates, they are multiprotocol sensors for temperature, humidity, CO₂, direction, or wind speed. With serial, Ethernet, or Wifi variants, they stand out for the use of open protocols that allow their integration with your work environment (SCADA, API, etc.).
Input and output modules
Although its use is in decline, there are still plants that maintain analog communication. In these cases, the sensors do not have network connectivity so that web or SCADA applications can collect their data… unless they are connected with analog or digital input converters to serial protocols, such as Modbus RTU, or Ethernet, such as Modbus TCP. Once the signal is received, the modules digitize it for use in computer applications.
In addition, thanks to the modules, when equipment with analog outputs has to be replaced, organizations can reuse old hardware, without having to invest in new sensors as well.
Accessories / network converters
Network converters are devices that facilitate physical layer changes such as Ethernet to RS485 / RS232, USB to RS485, Wifi to RS232 / 485 and vice versa. Thus, problems of distance or compatibility are avoided in companies.
Areas of action of Papouch solutions
Examples of models that may be useful to you
- Measurement range with combined sensor: temperature -40 to 125 °C, 0.1 °C resolution, humidity 0 to 100% and dew point calculation.
- Different versions Ethernet, Ethernet with PoE or Wifi
- Sensor with IP67 protection.
- Supports Important Ethernet protocols: IP, TCP, UDP, HTTP (WEB and mini WEB for PDA and mobiles), SMTP (e-mail), XML, Spinel, Modbus TCP and SNMP, HTTP and GET protocols for automatic sending to a remote server.
- The temperature can be transmitted via TCP / IP in ASCII format (in: °C, °F or K, without conversion).
- Web page to display the values and for its configuration (English).
- Logging Option: the values can be recorded in an internal memory with capacity for 120 records.
- Support for 35 mm DIN rail.
There are versions for series and other sensors to measure wind speed or direction, among others.
- Universal converter with independent analog voltage or current outputs. The available ranges are: 0 – 10 V, 0 – 5 V, ±10 V, ±5 V, 4 – 20 mA, 0 – 20 mA, 0 – 24 mA. Ethernet communication: Modbus, SNMP, XML, HTTP GET, TCP/UDP (Spinel).
In these cases, there are versions with analog inputs or outputs and digital inputs for Ethernet and serial.
- Serial-Device-Server: Ethernet to RS232 / RS422 / RS485 converter.
- GNOME232: Ethernet to RS232 converter.
- GNOME422: Ethernet to RS422 converter.
- GNOME485: Ethernet to RS485 converter.
- TCP2RTU: Modbus-TCP-Slave to Modbus-RTU-Master (RS485) Bridge/Gateway converter
- Wie485/232 – Wiegand to RS485/232 Converter.
- Converters for Wiegand contactless readers.
